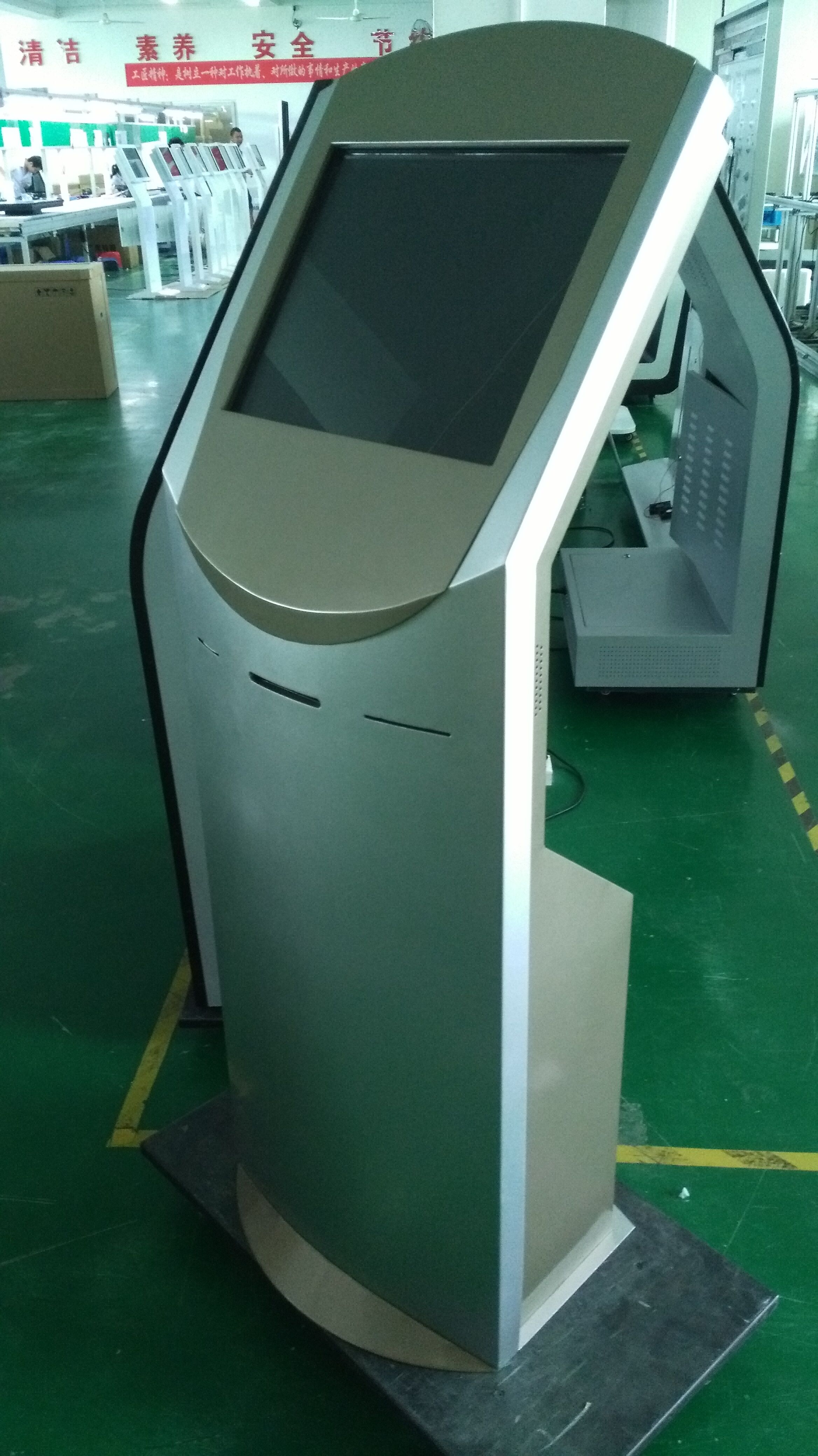

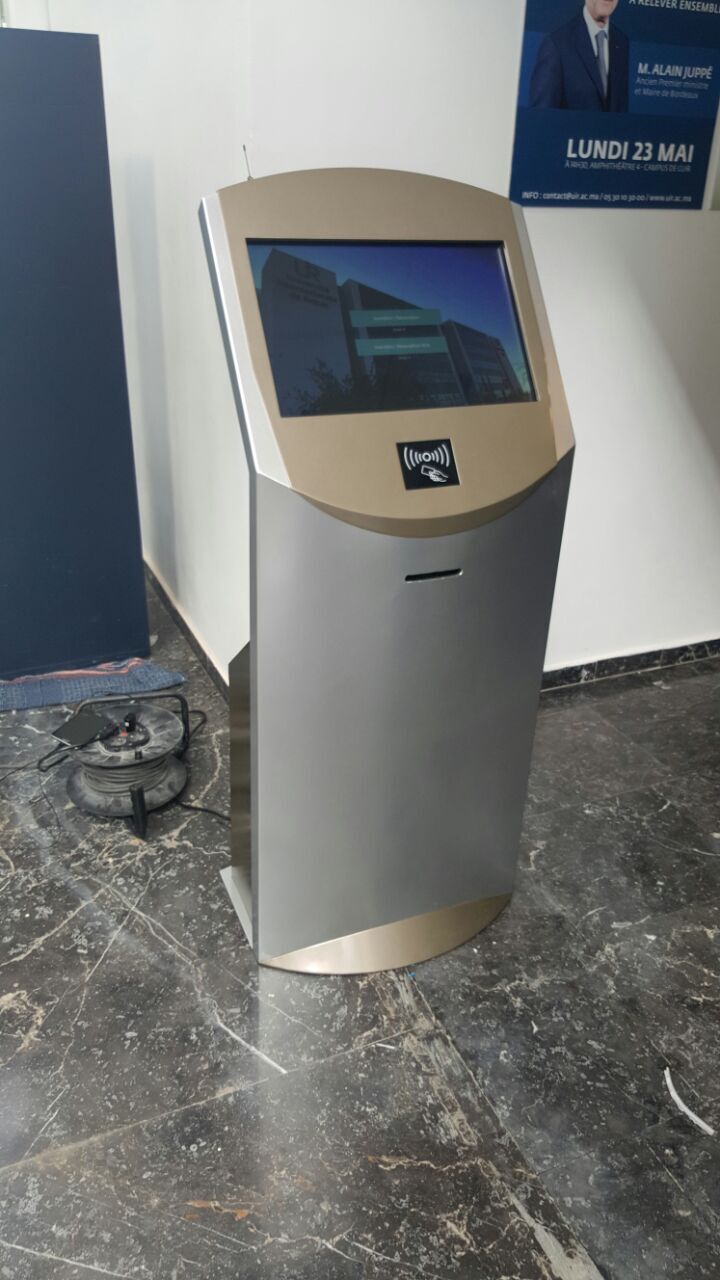

This terminal Kiosk's surface are with mechanical galvanizing platingt technology.  Euipped with 22 inches

touch LCD screen.  Built in PC ( Intel 1037  1.8G; DDR3 4GB;500GB Hard disk ) 2 points IR touch scren function ,build in 80mm  receipt thermal printer.

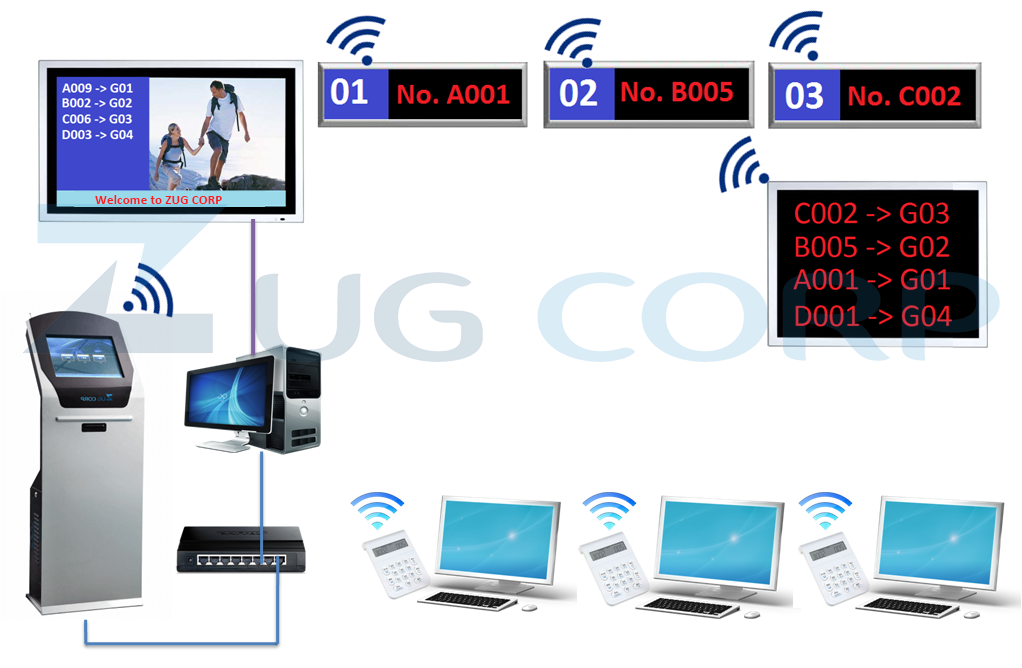

A queue management system is used to control queues. Queues of people form in various situations and locations in a queue area.

■LCD SIZE:LCD Size 22 inch
■Touch Screen Five wire resistive touch screen,single point touch life 50 million times;
■Resolution: 4096*4096
■Cabinet Steel cabinet,Car metal paint,Antimagnetic, antistatic,Full steel streamlined cabinet

■Color Main body slivery ,Screen frameDark Grey

■Power supply 110--240V 50Hz/60Hz
■Speaker With double channel and stereo surround amplifier system;

■Power:2 x 2W;frequency response:20Hz-20KHz
■Fan Industrial control is axial flow fan, no noise, circulation cooling

■Work environment Temperature:+5℃~+35℃ Humidity:40% ~ 80%
■Port USB,RJ45 or RJ11
■Product Size 1450mm(H)*470mm(W)*250mm(D)
■Net weight 39KG
■Printer EPSON T532 80mm thermal printer
■Wireless Frequency 433 channel, strong anti-jamming capability
■Packing size 1580mm*610mm*550mm
